Opening a Rackmount Chassis

Scope

This article explains how to open a rackmount chassis, such as a SIRIS Professional or SIRIS Enterprise. You might need to do this if you are replacing a hard drive or upgrading a hardware component.

Removing an Array Drive

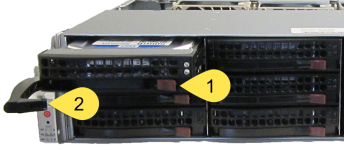

Figure 1 - Drive Removal

To remove an array drive, press the release tab (1), and then use the arm (2) to pull the drive tray straight out.

Opening the Chassis

Figure 2 - Opening the chassis (top view)

If you need to open the chassis to upgrade or replace a component, push down on both release buttons and slide the cover off, as shown in Figure 2.
