Replace the OS drive on an ALTO 5

Topic

This article covers the process of physically replacing the OS drive on the ALTO 5 devices.

NOTE  Before removing the OS drive, contact Datto Technical Support. A Datto technician will need to run back end procedures to monitor and complete the process. Do not remove the OS drive if there is a disaster recovery scenario in progress.

Environment

  • Datto ALTO 5

Description

  1. Power off and unplug the device.

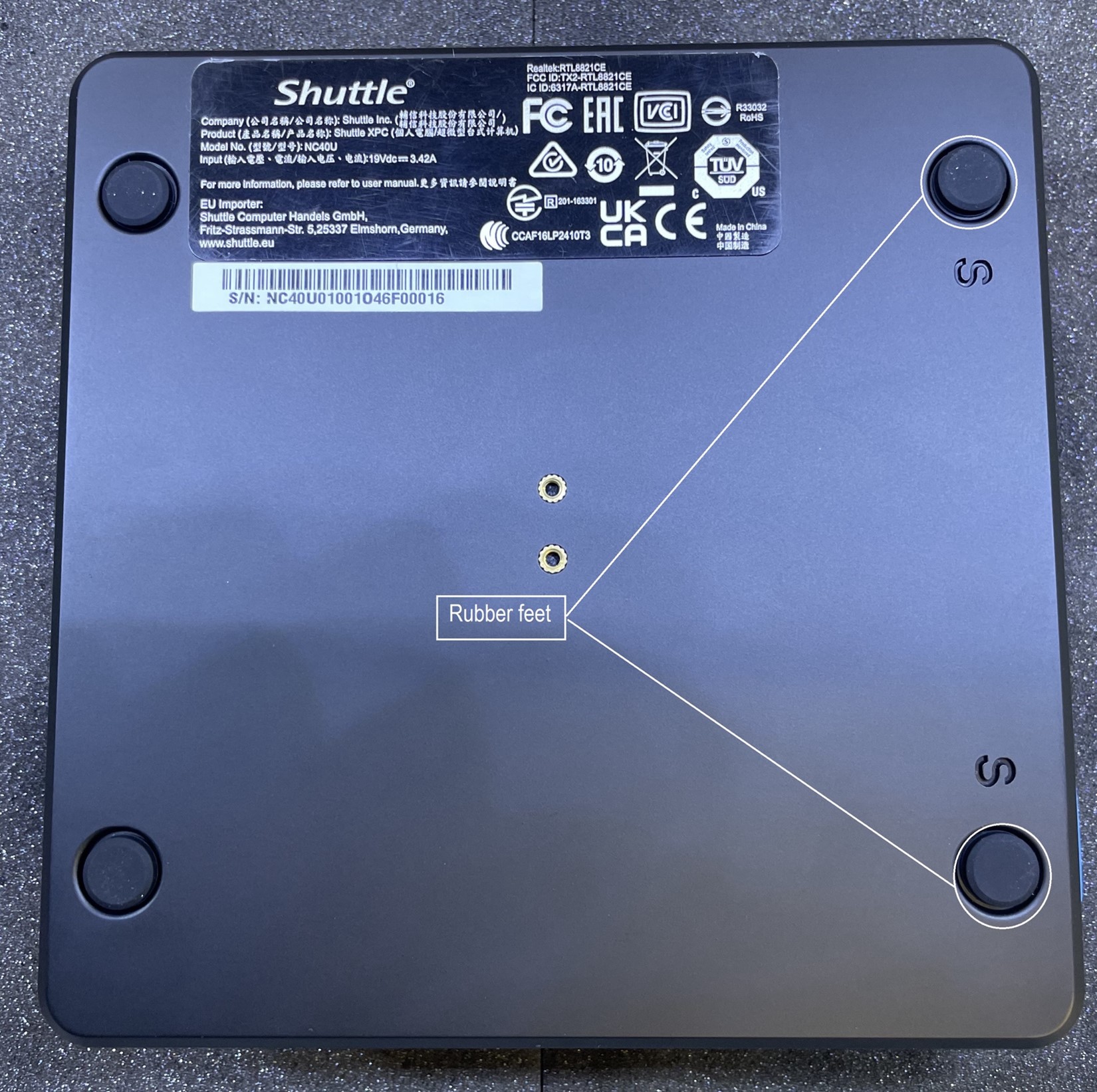

  2. Remove the two screws covered by the two rubber feet on the bottom of the device. There is an 'S' engraved by the correct feet.

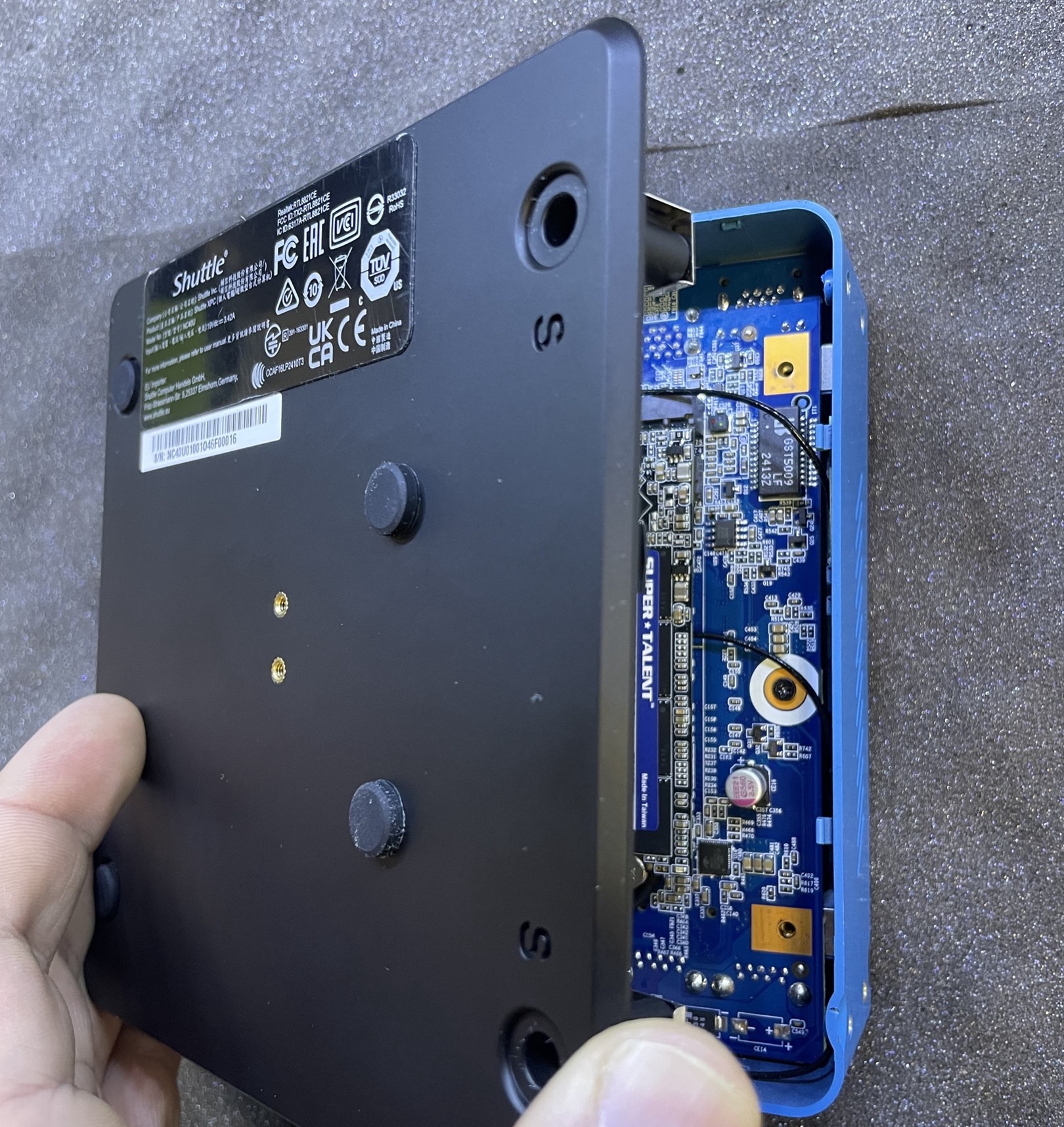

  3. Lift the bottom plate up from the side where the screws were located, to remove it.

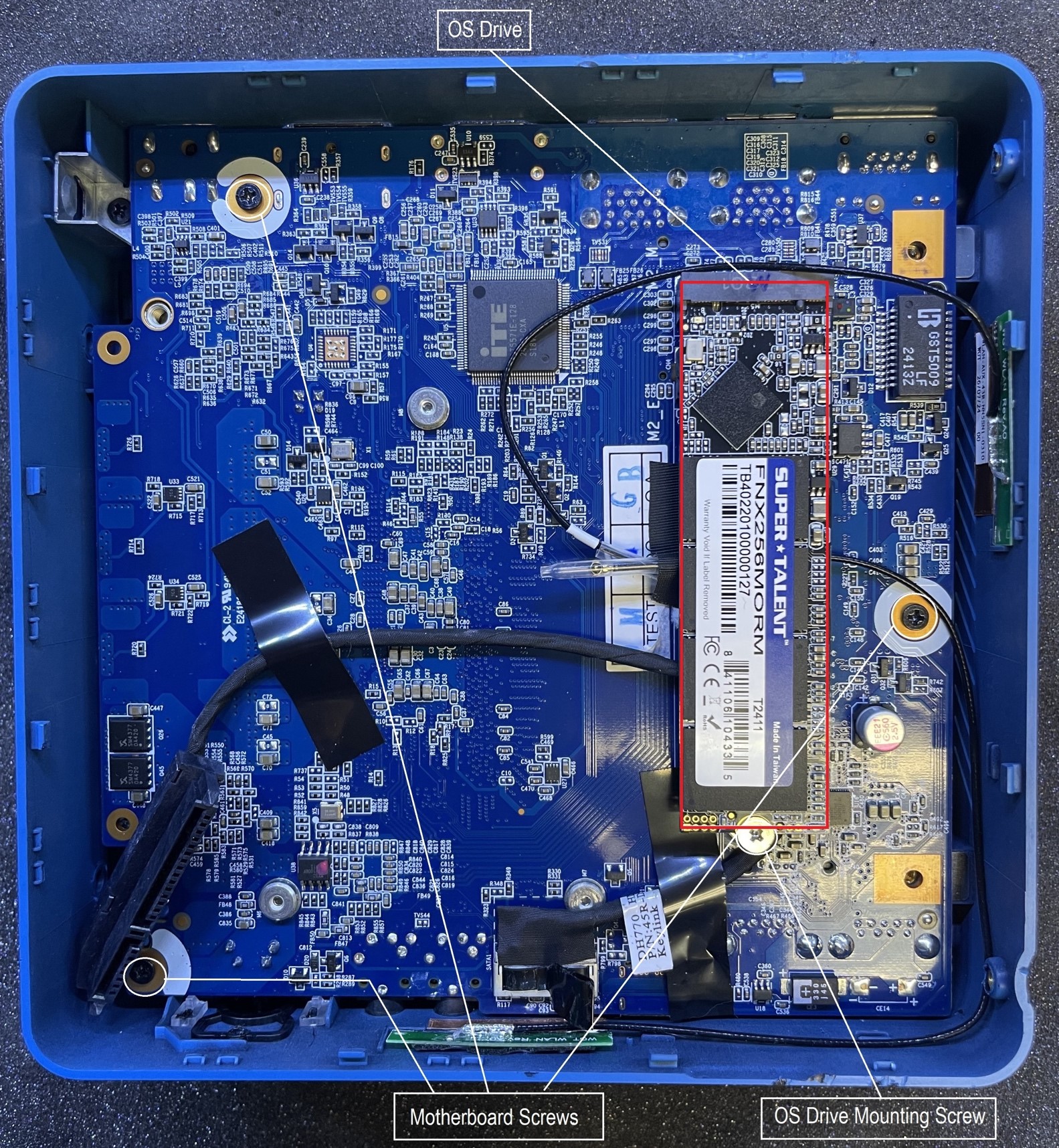

  1. Remove the OS drive mounting screw.

  1. Lift the drive from the motherboard.

  2. Insert the new drive and screw it into place with the same mounting screw.

  3. Install the bottom plate back to the chassis and secure it with the two screws.

  4. Plug in and power on the device.

The remaining steps in the process will be completed by Datto Technical Support.
