SIRIS 4 / NAS 4 Professional features and specifications

Topic

This article provides the layout, hardware specifications, and features for Datto's SIRIS 4 and NAS 4 Professional devices.

Environment

• SIRIS 4/NAS 4 Professional 2
• SIRIS 4/NAS 4 Professional 4
• SIRIS 4/NAS 4 Professional 6
• SIRIS 4/NAS 4 Professional 10

Description

• Device Layout
• LED Behavior
• Features
• Hardware Specifications

  • SIRIS 4/NAS 4 Professional 2
  • SIRIS 4/NAS 4 Professional 4
  • SIRIS 4/NAS 4 Professional 6
  • SIRIS 4/NAS 4 Professional 10
• Additional Resources

Device Layout

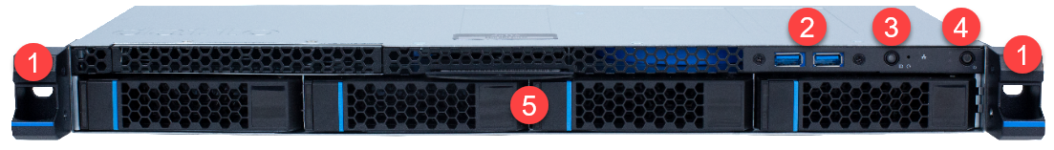

Figure 1: SIRIS 4 / NAS 4 Professional, front view

Figure 2: SIRIS 4 / NAS 4 Professional, rear view

1. Faceplate release toggles
2. 2 x USB 3.0
3. Unit identification LED
4. Power button
5. Array drives
6. Power input jack
7. Serial Port
8. VGA out
9. 2 x 10GbE
10. IPMI
11. 2 x USB 3.0

LED Behavior

Power LED Indicator:

The Power LED indicator represents the power state of the device:

• Power on: Solid blue
• Power off: Dark (the LED is off)

UID LED Indicator

The Unit Identifier (UID) LED indcator will glow blue when the unit identification button is pressed.

HDD LED Indicator

The Hard Drive Disk (HDD) LED indicator will flash amber during any HDD's read/write operation.

LAN LED Indicator

There are two LEDs for each onboard Ethernet interface, and each LED will respectively flash green during network traffic transmission.

Features

• SIRIS 4 Features
• Datto NAS 4 Features

Hardware Specifications

SIRIS 4/NAS 4 Professional 2

SIRIS 4/NAS 4 Professional 4

SIRIS 4/NAS 4 Professional 6

SIRIS 4/NAS 4 Professional 10
