ALTO 5 specifications

Topic

This article provides the layout and hardware specifications for Datto's ALTO 5, 2 TB devices.

Environment

  • Datto ALTO 5

Description

Agent level encryption is available for this device.

Feature sets of these devices can be found here: ALTO 5 Features.

Device Layout

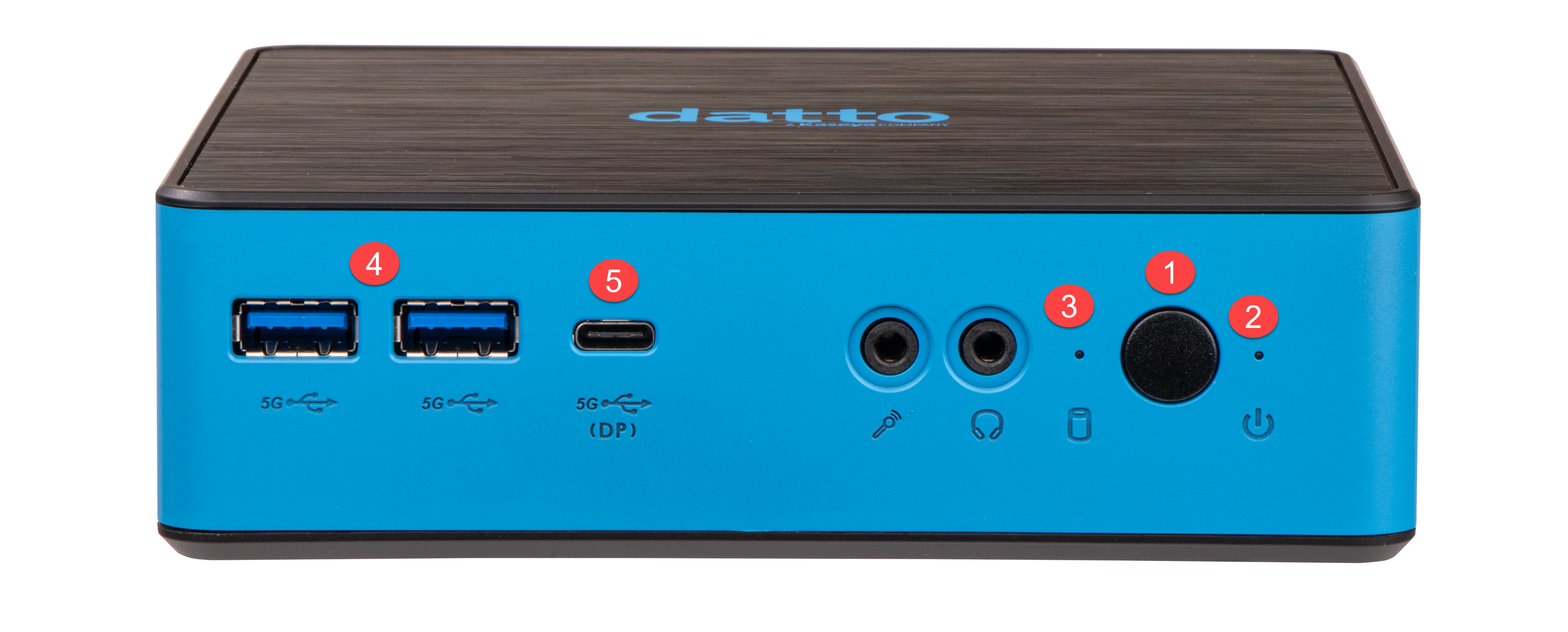

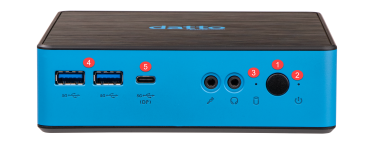

Front view

Rear View

  1. Power button
  2. Power LED
  3. HDD LED
  4. 2x USB 3.2 Gen 1 Type A
  5. 1x USB 3.2 Gen 1 Type C (w/DP)
  6. HDMI Port
  7. Display Port
  8. 2x USB 3.2 gen1 (5G)
  9. 2x USB 3.2 gen2 (10G)
  10. RJ45 (Ethernet Port)
  11. DC-in Jack

LED Behavior

  • Power LED: The indicator represents the power state of the device.

    • Power on: Illuminated
    • Power off: Dark (the LED is off)
  • Hard Drive Disk (HDD) LED: The indicator will flash amber during any HDD's read/write operation.

  • LAN LED: There are two LEDs for each onboard Ethernet interface, and each LED will respectively flash green during network traffic transmission.

Hardware Specifications

ModelALTO 5
Weight6.5 oz
Dimensions

Width: 142 mm
Depth: 142 mm
Height: 42 mm

Capacity2TB
CPUCeleron 7305 (5c/5t, 1.10 GHz)
RAM8GB DDR4 (1x8GB) non-ECC
NICs1x 1GbE
Dedicated OS Drive256GB SATA m.2 SSD
Storage Drives2TB NVMe m.2 SSD
RAIDN/A
Form FactorMicroPC
Power SupplyExternal
PSU Rating (W)65W
Agent-level encryptionYes
