S5X specifications

Topic

This article provides the layout and hardware specifications for Datto's S5X devices.

Environment

  • S5X

Description

Devices in this range of sizes may use one of two types of Dell chassis, the OptiPlex 7080 XE Micro or OptiPlex 7000 XE Micro. The features will be the same between the devices and the specifications of each are provided below. For information about determining the device model from the command line, refer to Updating SIRIS 5 and ALTO 4 firmware.

Feature sets of these devices can be found here: SIRIS Features

Device Layout

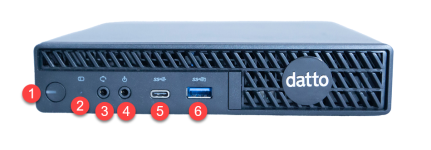

Front view

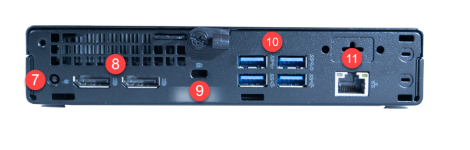

Rear view

  1. Power button with LED indicator
  2. Hard drive activity LED indicator
  3. Universal Audio Jack (Not used)
  4. Line Out (Not used)
  5. USB 3.0. Type C
  6. USB 3.0. Type A
  7. Power connection
  8. DisplayPort (x2)
  9. Kensington lock
  10. USB 3.0. (x4)
  11. Gigabit Ethernet Network Interface Port with LAN LED indicators

LED Behavior

  • Power LED: The indicator represents the power state of the device.

    • Power on: Illuminated
    • Power off: Dark (the LED is off)

  • Hard Drive Disk (HDD) LED: The indicator will flash amber during any HDD's read/write operation.

  • LAN LED: There are two LEDs for each onboard Ethernet interface, and each LED will respectively flash green during network traffic transmission.

Hardware Specifications

ModelS5X
Weight3.04 LBs
DimensionsHeight: 1.42 in. (36.00 mm)
Width: 7.16 in. (182.00 mm)
Depth: 7.03 in. (178.56 mm)
Capacity2TB
CPUIntel Core i3-10100T (4c/8t, 3.00 GHz)
RAM16GB DDR4 (1x16GB ) Non-ECC
NICs1x(1GbE)
Dedicated OS Drive1x(128GB NVMe m.2 SSD)
Storage Drives1x(2TB NVMe m.2 SSD)
RAIDN/A
Form FactorMiniPC
Power SupplyExternal PSU
Idle Power (W)10
Operating Power (W)42
PSU Rating (W)95
Agent-level encryptionSupported on SIRIS

Device Layout

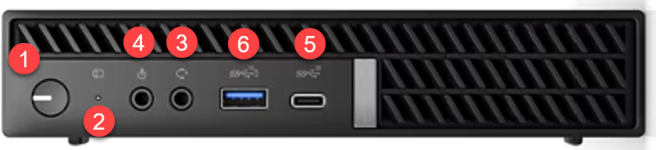

Front view

Rear view

  1. Power button with LED indicator
  2. Hard drive activity LED indicator
  3. Universal Audio Jack (Not used)
  4. Line Out (Not used)
  5. USB 3.0. Type C
  6. USB 3.0. Type A
  7. Power connection
  8. DisplayPort (x2)
  9. USB 3.0. (x4)
  10. Gigabit Ethernet Network Interface Port with LAN LED indicators

LED Behavior

  • Power LED: The indicator represents the power state of the device.

    • Power on: Illuminated
    • Power off: Dark (the LED is off)

  • Hard Drive Disk (HDD) LED: The indicator will flash amber during any HDD's read/write operation.

  • LAN LED: There are two LEDs for each onboard Ethernet interface, and each LED will respectively flash green during network traffic transmission.

Hardware Specifications

ModelS5X
Weight3 LBs (1.4 kg)
Dimensions

Height: 1.42 in. (36.00 mm)

Width: 7.16 in. (182.00 mm)

Depth: 7.03 in. (178.56 mm)

Capacity2TB
CPUIntel Core i5-12500T (6c/12t, 2.00 GHz)
RAM16GB DDR4 (1x16GB ) Non-ECC
NICs1x(1GbE)
Dedicated OS Drive1x(256GB NVMe m.2 SSD)
Storage Drives1x(2TB NVMe m.2 SSD)
RAIDN/A
Form FactorMiniPC
Power SupplyExternal PSU
Idle Power (W)6
Operating Power (W)35
PSU Rating (W)130
Agent-level encryptionSupported on SIRIS
