SIRIS 5-2,3, and 4TB features and specifications
Topic
This article provides the layout, hardware specifications, and features for Datto's SIRIS 5-2, SIRIS 5-3 and SIRIS 5-4 devices.
Environment
- S5-2
- S5-3
- S5-4
Description
Devices in this range of sizes may use one of two types of Dell chassis, the Precision 3930 XL or PowerEdge R250XE. The features will be the same between the devices and the specifications of each are provided below. For information about determining the device model from the command line, refer to Updating SIRIS 5 and ALTO 4 firmware.
NOTE Once the device is plugged in, it will perform a function test. As a part of this test, you will hear the fans power on briefly and you may see some lights flicker on the device as well. This is normal behavior but is NOT an indication that the device has been powered on. In order for the device to properly power on, you will need to press the power button.
Feature sets of these devices can be found here: SIRIS Features
Precision 3930 XL
Device Layout

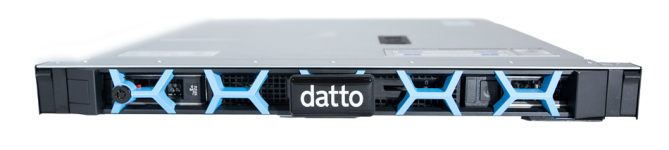

Front view

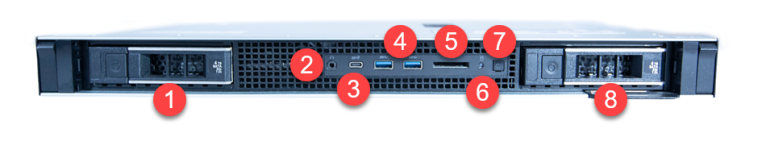

Front view without faceplate

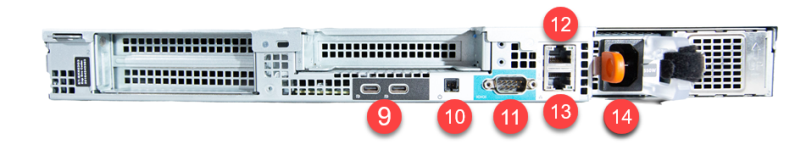

Rear view
- Storage Array drive
- Universal Audio jack (Not used)
- USB 3.1 Type C
- USB 3.1 Type A (x2)
- SD Card reader
- HDD Activity Indicator
- Power button
- Storage Array drive
- USB Type C (x2)
This also serves as the Video Output (USB-C to HDMI adapter included) - Remote Power Switch Connector
- Serial Port
- 1 GbE Network Port with LED indicator
- 10 GbE Network Port with LED indicator
- Power supply connection
LED Behavior
-
Power LED: The indicator represents the power state of the device.
- Power on: Illuminated
- Power off: Dark (the LED is off)
-
Unit Identifier (UID) LED: The indicator will glow when the unit identification button is pressed.
-
Hard Drive Disk (HDD) LED: The indicator will flash amber during any HDD's read/write operation.
-
LAN LED: There are two LEDs for each onboard Ethernet interface, and each LED will respectively flash green during network traffic transmission.
Hardware Specifications
| Model | S5-2 | S5-3 | S5-4 |
| Weight | 19.27 Lbs (8.74 kg) | 19.27 Lbs (8.74 kg) | 19.27 Lbs (8.74 kg) |
| Dimensions | Height: 1.68" (42.8 mm) Width: 18.98" (482 mm) Depth: 23.19” (589.1 mm) with Bezel 22.74” (577.6 mm) without Bezel |
Height: 1.68" (42.8 mm) Width: 18.98" (482 mm) Depth: 23.19” (589.1 mm) with Bezel 22.74” (577.6 mm) without Bezel |
Height: 1.68" (42.8 mm) Width: 18.98" (482 mm) Depth: 23.19” (589.1 mm) with Bezel 22.74” (577.6 mm) without Bezel |
| Capacity | 2TB | 3TB | 4TB |
| CPU | Xeon E-2286G (6c/12t 4GHz, 4.9GHz Turbo) | Xeon E-2286G (6c/12t 4GHz, 4.9GHz Turbo) | Xeon E-2286G (6c/12t 4GHz, 4.9GHz Turbo) |
| RAM | 32GB (2x16GB) ECC | 32GB (2x16GB) ECC | 32GB (2x16GB) ECC |
| RAID | RAID 1 | RAID 1 | RAID 1 |
| NICs |
1x(1GbE) 1x(10GbE) |
1x(1GbE) 1x(10GbE) |
1x(1GbE) 1x(10GbE) |
| Dedicated OS Drive | M.2 256GB PCIe NVMe Class 40 SSD | M.2 256GB PCIe NVMe Class 40 SSD | M.2 256GB PCIe NVMe Class 40 SSD |
| SLOG Drive | M.2 256GB PCIe NVMe Class 40 SSD | M.2 256GB PCIe NVMe Class 40 SSD | M.2 256GB PCIe NVMe Class 40 SSD |
| Storage Drives | 2x(3.5" 4TB SATA HDD) | 2x(3.5" 4TB SATA HDD) | 2x(3.5" 4TB SATA HDD) |
| Form Factor | 1U Rackmount | 1U Rackmount | 1U Rackmount |
| Power Supply | Single Internal | Single Internal | Single Internal |
| Idle Power (W) | 50 | 50 | 50 |
| Operating Power (W) | 137 | 137 | 137 |
| PSU Rating (W) | 550 | 550 | 550 |
| Agent-level encryption | Supported on SIRIS | Supported on SIRIS | Supported on SIRIS |
PowerEdge R250XE
Device Layout

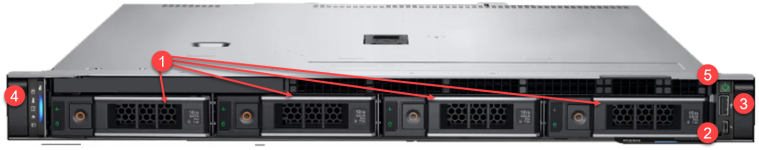

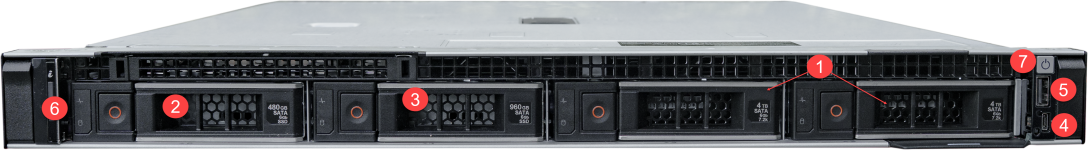

Front view

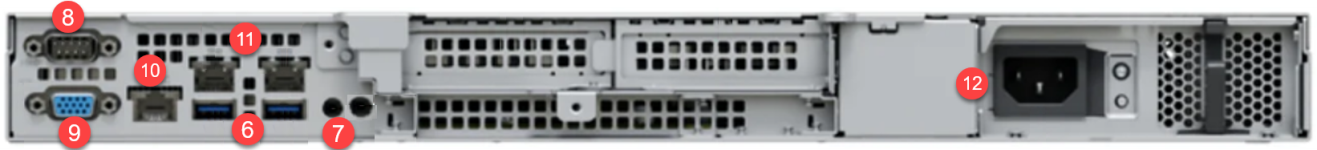

Rear view
- Storage Array drive slots
- USB Type C
- USB Type A
- HDD Activity Indicator
- Power Button
- USB 3.1 Type A (x2)
- CMA Jack
- Serial Port
- VGA Port
- iDRAC Ethernet Port
- 1 GbE Network Port with LED indicator (x2)
- Power supply connection
LED Behavior
-
Power LED: The indicator represents the power state of the device.
- Power on: Illuminated
- Power off: Dark (the LED is off)
-
Unit Identifier (UID) LED: The indicator will glow when the unit identification button is pressed.
-
Hard Drive Disk (HDD) LED: The indicator will flash amber during any HDD's read/write operation.
-
LAN LED: There are two LEDs for each onboard Ethernet interface, and each LED will respectively flash green during network traffic transmission.
Hardware Specifications
| Model | S5-2 | S5-3 | S5-4 |
| Weight | 22.5 lbs (10.2 kg) | 22.5 lbs (10.2 kg) | 22.5 lbs (10.2 kg) |
| Dimensions | Height: 1.68 (42.8 mm)
Width: 18.97 (482 mm) Depth: 23.56 (598.6 mm) with Bezel |
Height: 1.68 (42.8 mm)
Width: 18.97 (482 mm) Depth: 23.56 (598.6 mm) with Bezel |
Height: 1.68 (42.8 mm)
Width: 18.97 (482 mm) Depth: 23.56 (598.6 mm) with Bezel |
| Capacity | 2TB | 3TB | 4TB |
| CPU | Xeon E-2336 (6c/12t, 2.9GHz base) | Xeon E-2336 (6c/12t, 2.9GHz base) | Xeon E-2336 (6c/12t, 2.9GHz base) |
| RAM | 32GB (1x32GB) ECC | 32GB (1x32GB) ECC | 32GB (1x32GB) ECC |
| RAID | RAID 1 | RAID 1 | RAID 1 |
| NICs | 2x(1GbE) | 2x(1GbE) | 2x(1GbE) |
| Dedicated OS Drive | 2x(m.2 480GB) RAID 1 on BOSS-S1 | 2x(m.2 480GB) RAID 1 on BOSS-S1 | 2x(m.2 480GB) RAID 1 on BOSS-S1 |
| SLOG Drive | 960GB SATA 2.5" SSD | 960GB SATA 2.5" SSD | 960GB SATA 2.5" SSD |
| Storage Drives | 2x(3.5" 4TB SATA HDD) | 2x(3.5" 4TB SATA HDD) | 2x(3.5" 4TB SATA HDD) |
| Form Factor | 1U Rackmount | 1U Rackmount | 1U Rackmount |
| Power Supply | Cabled | Cabled | Cabled |
| Idle Power (W) | 50 | 50 | 50 |
| Operating Power (W) | 100 | 100 | 100 |
| PSU Rating (W) | 450 | 450 | 450 |
| Agent-level encryption | Supported on SIRIS | Supported on SIRIS | Supported on SIRIS |
