SIRIS 5-6 through 36 features and specifications
Topic
This article provides the layout, hardware specifications, and features for Datto's S5-6, S5-8, S5-12, S5-18, S5-24 and S5-36 devices.
Environment
- S5-6
- S5-8
- S5-12
- S5-18
- S5-24
- S5-36
Description
Devices in this range of sizes may use one of two types of Dell chassis, the PowerEdge R640 or PowerEdge R660XS. The features will be the same between the devices and the specifications of each are provided below. For information about determining the device model from the command line, refer to Updating SIRIS 5 and ALTO 4 firmware.
NOTE Once the device is plugged in, it will perform a function test. As a part of this test, you will hear the fans power on briefly and you may see some lights flicker on the device as well. This is normal behavior but is NOT an indication that the device has been powered on. In order for the device to properly power on, you will need to press the power button.
Feature sets of these devices can be found here: SIRIS Features
PowerEdge R640 model
Device Layout

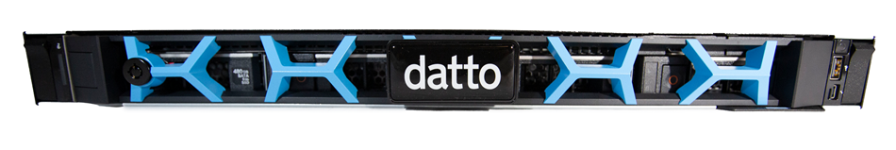

Front view

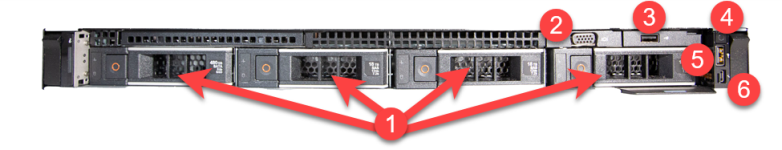

Front view (without faceplate)

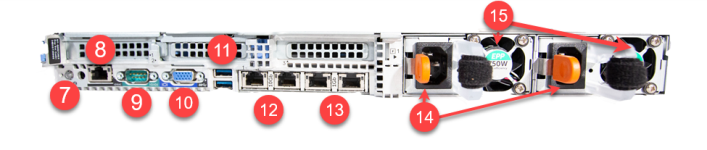

Rear view
- Storage Array Drives
- VGA Out
- USB 2.0 Type A
- Power button
- USB 2.0 TYPE A
- USB 3.0 Type C
- UID Indicator
- IPMI (IDRAC) Port
- Serial Port
- VGA Out
- USB 3.0 Type A (x2)
- 10GbE NIC Port (x2)
- 1GbE NIC Port (x2)
- Power Supply Unit (PSU) connection (x2)
- Fan (x2)
LED Behavior
-
Power LED: The indicator represents the power state of the device.
- Power on: Illuminated
- Power off: Dark (the LED is off)
-
Unit Identifier (UID) LED: The indicator will glow when the unit identification button is pressed.
-
Hard Drive Disk (HDD) LED: The indicator will flash amber during any HDD's read/write operation.
-
LAN LED: There are two LEDs for each onboard Ethernet interface, and each LED will respectively flash green during network traffic transmission.
Hardware Specifications
| Model | S5-6 | S5-8 | S5-12 | S5-18 | S5-24 | S5-36 | S5-10-SSD | S5-30-SSD |
| Weight | 48.3 lbs (21.9 kg) | 48.3 lbs (21.9 kg) | 48.3 lbs (21.9 kg) | 48.3 lbs (21.9 kg) | 48.3 lbs (21.9 kg) | 48.3 lbs (21.9 kg) | 48.3 lbs (21.9 kg) | 48.3 lbs (21.9 kg) |
| Dimensions | Height: 1.69” (42.8mm) Width*: 18.98” (482.0mm) Depth*: 31.8” (808.5mm) *Dimensions include bezel. |
Height: 1.69” (42.8mm) Width*: 18.98” (482.0mm) Depth*: 31.8” (808.5mm) *Dimensions include bezel. |
Height: 1.69” (42.8mm) Width*: 18.98” (482.0mm) Depth*: 31.8” (808.5mm) *Dimensions include bezel. |
Height: 1.69” (42.8mm) Width*: 18.98” (482.0mm) Depth*: 31.8” (808.5mm) *Dimensions include bezel. |
Height: 1.69” (42.8mm) Width*: 18.98” (482.0mm) Depth*: 31.8” (808.5mm) *Dimensions include bezel. |
Height: 1.69” (42.8mm) Width*: 18.98” (482.0mm) Depth*: 31.8” (808.5mm) *Dimensions include bezel. |
Height: 1.69” (42.8mm) Width*: 18.98” (482.0mm) Depth*: 31.8” (808.5mm) *Dimensions include bezel. |
Height: 1.69” (42.8mm) Width*: 18.98” (482.0mm) Depth*: 31.8” (808.5mm) *Dimensions include bezel. |
| Capacity | 6TB | 8TB | 12TB | 18TB | 24TB | 36TB | 10TB | 30TB |
| CPU | Xeon Gold - 6226R (16c, 32t, 2.9GHz) | Xeon Gold - 6226R (16c, 32t, 2.9GHz) | Xeon Gold - 6226R (16c, 32t, 2.9GHz) | 2x(5218R) (40c/80t, 2.1GHz) | 2x(5218R) (40c/80t, 2.1GHz) | 2x(5218R) (40c/80t, 2.1GHz) | 2x(Xeon Silver 4210Y) (20C/40T, 2.2GHz base) | 2x(Xeon Gold 5218R) (40C/80T, 2.1GHz base) |
| RAM | 96GB (6x16GB) ECC | 96GB (6x16GB) ECC | 96GB (6x16GB) ECC | 192GB (12x16GB) ECC | 192GB (12x16GB) ECC | 192GB (12x16GB) ECC | 128GB (8x16GB) ECC | 192GB (12x16GB) ECC |
| RAID | RAID 1 (Mirror) | RAID 1 (Mirror) | RAID 1 (Mirror) | RAID 1 (Mirror) | RAID 5 | RAID 5 | RAIDZ1 (Mirror) | RAIDZ2 |
| NICs |
2x(1Gb Copper) 2x(10Gb Copper) |
2x(1Gb Copper) 2x(10Gb Copper) |
2x(1Gb Copper) 2x(10Gb Copper) |
2x(1Gb Copper) 2x(10Gb Copper) |
2x(1Gb Copper) 2x(10Gb Copper) |
2x(1Gb Copper) 2x(10Gb Copper) |
2x(1Gb Copper) 2x(10Gb Copper) |
2x(1Gb Copper) 2x(10Gb Copper) |
| Dedicated OS Drive | 2x(m.2 240GB) RAID 1 on Boss Card | 2x(m.2 240GB) RAID 1 on Boss Card | 2x(m.2 240GB) RAID 1 on Boss Card | 2x(m.2 240GB) RAID 1 on Boss Card | 2x(m.2 240GB) RAID 1 on Boss Card | 2x(m.2 240GB) RAID 1 on Boss Card | 2x(m.2 240GB) RAID 1 on Boss Card | 2x(m.2 240GB) RAID 1 on Boss Card |
| SLOG Drive | 480GB S4610 2.5" SATA SSD | 480GB S4610 2.5" SATA SSD | 480GB S4610 2.5" SATA SSD | 480GB S4610 2.5" SATA SSD | 480GB S4610 2.5" SATA SSD | 480GB S4610 2.5" SATA SSD | 480GB S4610 2.5" SATA SSD | 480GB S4610 2.5" SATA SSD |
| Storage Drives | 2x(8TB SAS 3.5" HDD) | 2x(8TB SAS 3.5" HDD) | 2x(12TB SAS 3.5" HDD) | 2x(18TB SAS 3.5" HDD) | 3x(12TB SAS 3.5" HDD) | 3x(18TB SAS 3.5" HDD) | 4x(3.84TB NVME) | 10x(3.84TB NVME) |
| Form Factor | 1U | 1U | 1U | 1U | 1U | 1U | 1U | 1U |
| Power Supply | Dual - Hot Plug, Redundant PSU | Dual - Hot Plug, Redundant PSU | Dual - Hot Plug, Redundant PSU | Dual - Hot Plug, Redundant PSU | Dual - Hot Plug, Redundant PSU | Dual - Hot Plug, Redundant PSU | Dual - Hot Plug, Redundant PSU | Dual - Hot Plug, Redundant PSU |
| Idle Power (W) | 148 | 148 | 148 | 244 | 244 | 244 | 244 | 244 |
| Operating Power (W) | 282 | 282 | 282 | 483 | 483 | 483 | 483 | 483 |
|
PSU Rating (W) |
495 |
495 |
495 |
750 |
750 |
750 |
750 |
750 |
| Agent-level encryption | Supported on SIRIS | Supported on SIRIS | Supported on SIRIS | Supported on SIRIS | Supported on SIRIS | Supported on SIRIS | Supported on SIRIS | Supported on SIRIS |
PowerEdge R660XS model
Device Layout

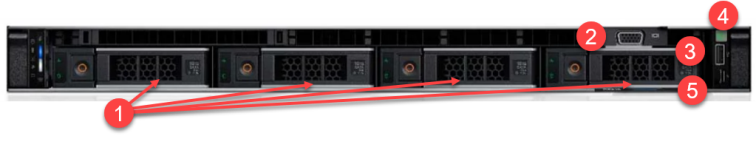

Front view

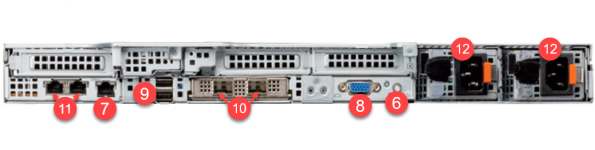

Rear view
- Storage Array Drives
- VGA Out
- USB 2.0 Type A
- Power button
- USB 3.0 Type C
- UID Indicator
- IPMI (IDRAC) Port
- VGA Out
- USB 3.0 Type A (x2)
- 10GbE NIC Port (x2)
- 1GbE NIC Port (x2)
- Power Supply Unit (PSU) connection (x2)
LED Behavior
-
Power LED: The indicator represents the power state of the device.
- Power on: Illuminated
- Power off: Dark (the LED is off)
-
Unit Identifier (UID) LED: The indicator will glow when the unit identification button is pressed.
-
Hard Drive Disk (HDD) LED: The indicator will flash amber during any HDD's read/write operation.
-
LAN LED: There are two LEDs for each onboard Ethernet interface, and each LED will respectively flash green during network traffic transmission.
Hardware Specifications
| Model | S5-6 | S5-8 | S5-12 | S5-18 | S5-24 | S5-36 |
S5-10-SSD |
S5-30-SSD |
| Weight | 37.0 lbs (16.82 kg) | 37.0 lbs (16.82 kg) | 37.0 lbs (16.82 kg) | 37.0 lbs (16.82 kg) | 37.0 lbs (16.82 kg) | 37.0 lbs (16.82 kg) | 37.0 lbs (16.82 kg) | 37.0 lbs (16.82 kg) |
| Dimensions | Height: 1.69” (42.8mm) Width*: 18.98” (482.0mm) Depth*: 28.91” (736.5mm) *Dimensions include bezel. |
Height: 1.69” (42.8mm) Width*: 18.98” (482.0mm) Depth*: 28.91” (736.5mm) *Dimensions include bezel. |
Height: 1.69” (42.8mm) Width*: 18.98” (482.0mm) Depth*: 28.91” (736.5mm) *Dimensions include bezel. |
Height: 1.69” (42.8mm) Width*: 18.98” (482.0mm) Depth*: 28.91” (736.5mm) *Dimensions include bezel. |
Height: 1.69” (42.8mm) Width*: 18.98” (482.0mm) Depth*: 28.91” (736.5mm) *Dimensions include bezel. |
Height: 1.69” (42.8mm) Width*: 18.98” (482.0mm) Depth*: 28.91” (736.5mm) *Dimensions include bezel. |
Height: 1.69” (42.8mm) Width*: 18.98” (482.0mm) Depth*: 28.91” (736.5mm) *Dimensions include bezel. |
Height: 1.69” (42.8mm) Width*: 18.98” (482.0mm) Depth*: 28.91” (736.5mm) *Dimensions include bezel. |
| Capacity | 6TB | 8TB | 12TB | 18TB | 24TB | 36TB |
10TB |
30TB |
| CPU | Xeon SIlver 4416+ (20C/40T, 2.0GHz base) | Xeon SIlver 4416+ (20C/40T, 2.0GHz base) | Xeon SIlver 4416+ (20C/40T, 2.0GHz base) | 2x(Xeon SIlver 4416+) (20C/40T, 2.0GHz base) | 2x(Xeon SIlver 4416+) (20C/40T, 2.0GHz base) | 2x(Xeon SIlver 4416+) (20C/40T, 2.0GHz base) |
2x(Xeon Silver 4410Y) (12C/24T, 2.0GHz base) |
2x(Xeon Gold 5416Y) (16C/32T, 2.0GHz base) |
| RAM | 96GB (6x16GB) ECC | 96GB (6x16GB) ECC | 96GB (6x16GB) ECC | 192GB (12x16GB) ECC | 192GB (12x16GB) ECC | 192GB (12x16GB) ECC |
128GB (8x16GB) ECC |
192GB (12x16GB) ECC |
| RAID | RAID 1 (Mirror) | RAID 1 (Mirror) | RAID 1 (Mirror) | RAID 5 | RAID 5 | RAID 5 |
RAIDZ1 (Mirror) |
RAIDZ2 |
| NICs |
2x(1Gb Copper) 2x(10Gb Copper) |
2x(1Gb Copper) 2x(10Gb Copper) |
2x(1Gb Copper) 2x(10Gb Copper) |
2x(1Gb Copper) 2x(10Gb Copper) |
2x(1Gb Copper) 2x(10Gb Copper) |
2x(1Gb Copper) 2x(10Gb Copper) |
2x(1Gb Copper) 2x(10Gb Copper) |
2x(1Gb Copper) 2x(10Gb Copper) |
| Dedicated OS Drive | 2x(480GB m.2) RAID 1 on Boss Card | 2x(480GB m.2) RAID 1 on Boss Card | 2x(480GB m.2) RAID 1 on Boss Card | 2x(480GB m.2) RAID 1 on Boss Card | 2x(480GB m.2) RAID 1 on Boss Card | 2x(480GB m.2) RAID 1 on Boss Card | 2x(480GB m.2) RAID 1 on Boss Card | 2x(480GB m.2) RAID 1 on Boss Card |
| SLOG Drive | 960GB vSAS 2.5" SSD | 960GB vSAS 2.5" SSD | 960GB vSAS 2.5" SSD | 960GB vSAS 2.5" SSD | 960GB vSAS 2.5" SSD | 960GB vSAS 2.5" SSD | 960GB vSAS 2.5" SSD | 960GB vSAS 2.5" SSD |
| Storage Drives | 2x(12TB SAS 3.5" HDD) | 2x(12TB SAS 3.5" HDD) | 2x(16TB SAS 3.5" HDD) | 3x(12TB SAS 3.5" HDD) | 3x(12TB SAS 3.5" HDD) | 3x(20TB SAS 3.5" HDD) | 4x(3.84TB NVME) | 10x(3.84TB NVME) |
| Form Factor | 1U | 1U | 1U | 1U | 1U | 1U | 1U | 1U |
| Power Supply | Dual - Hot Plug, Redundant PSU | Dual - Hot Plug, Redundant PSU | Dual - Hot Plug, Redundant PSU | Dual - Hot Plug, Redundant PSU | Dual - Hot Plug, Redundant PSU | Dual - Hot Plug, Redundant PSU | Dual - Hot Plug, Redundant PSU | Dual - Hot Plug, Redundant PSU |
| Idle Power (W) | 175 | 175 | 175 | 200 | 200 | 200 | 200 | 200 |
| Operating Power (W) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| PSU Rating (W) | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 |
| Agent-level encryption | Supported on SIRIS | Supported on SIRIS | Supported on SIRIS | Supported on SIRIS | Supported on SIRIS | Supported on SIRIS | Supported on SIRIS | Supported on SIRIS |
