SIRIS 5-48 and 60TB features and specifications

Topic

This article provides the layout, hardware specifications, and features for Datto's SIRIS 5-48 and S5-60 devices.

Environment

  • S5-48
  • S5-60

Description

Devices in this range of sizes may use one of two types of Dell chassis, the Poweredge R740xd or Poweredge R760XS. The features will be the same between the devices and the specifications of each are provided below. For information about determining the device model from the command line, refer to Updating SIRIS 5 and ALTO 4 firmware.

NOTE  Once the device is plugged in, it will perform a function test. As a part of this test, you will hear the fans power on briefly and you may see some lights flicker on the device as well. This is normal behavior but is NOT an indication that the device has been powered on. In order for the device to properly power on, you will need to press the power button.

Feature sets of these devices can be found here: SIRIS Features

Device Layout

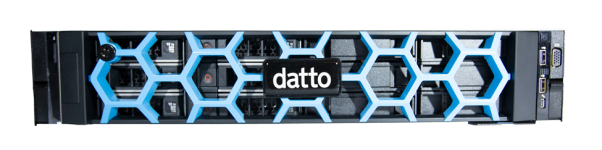

Front view

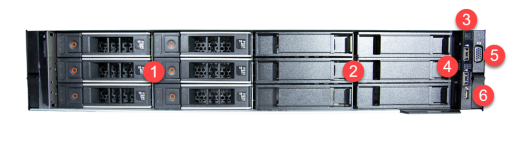

Front view (faceplate removed)

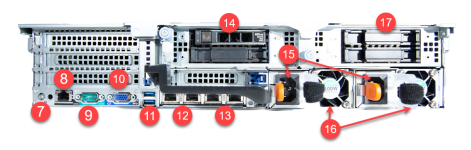

Rear view

  1. Storage Array Drives
  2. Additional SSD bays (Empty)
  3. Power Button
  4. USB 2.0 Type A (x2)
  5. VGA Out
  6. USB 3.0Type C
  7. UID Indicator
  8. IPMI / IDRAC Network Port
  9. Serial Port
  10. VGA Out
  11. USB 3.0 Type A (x2)
  12. 10GbE Network Ports (x2)
  13. 1GbE Network Ports (x2)
  14. SLOG SSD Drive.
  15. Power Supply Unit (x2)
  16. Fan (x2)
  17. Additional SSD bays (Empty)

LED Behavior

  • Power LED: The indicator represents the power state of the device.

    • Power on: Illuminated
    • Power off: Dark (the LED is off)

  • Unit Identifier (UID) LED: The indicator will glow when the unit identification button is pressed.

  • Hard Drive Disk (HDD) LED: The indicator will flash amber during any HDD's read/write operation.

  • LAN LED: There are two LEDs for each onboard Ethernet interface, and each LED will respectively flash green during network traffic transmission.

Hardware Specifications

Model S5-48 S5-60
Weight 63.0lbs (28.6kg) 63.0lbs (28.6kg)
Dimensions Height 3.4" (86.8mm)
Width 17.1" (434.0m)
Depth 29.0" (737.5mm) 		Height 3.4" (86.8mm)
Width 17.1" (434.0m)
Depth 29.0" (737.5mm)
Capacity 48 TB 60 TB
CPU 2x5220R (48c/96t, 2.2GHz) 2x5220R (48c/96t, 2.2GHz)
RAM 512GB (16x32GB) ECC 512GB (16x32GB) ECC
RAID RAID 10 RAID 10
NICs

2x(10GbE Copper)

2x(1GbE Copper)

2x(10GbE Copper)

2x(1GbE Copper)
Dedicated OS Drive 2x(240GB m.2) RAID 1 on Boss Card 2x(240GB m.2) RAID 1 on Boss Card
SLOG Drive 480GB S4610 2.5" SATA SSD 480GB S4610 2.5" SATA SSD
Storage Drives 6x(18TB SAS HDD) 8x(18TB SAS HDD)
Form Factor 2U 2U
Power Supply Dual - Hot Plug, Redundant PSU Dual - Hot Plug, Redundant PSU
Idle Power (W) 360 360
Operating Power (W) 647 647
PSU Rating (W) 1100 1100
Agent-level encryption Supported on SIRIS Supported on SIRIS

Device Layout

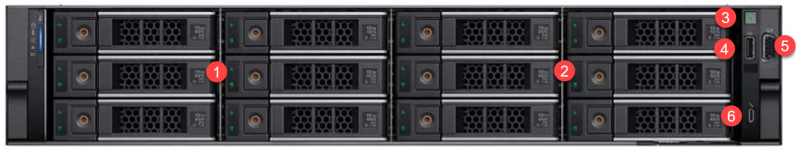

Front view

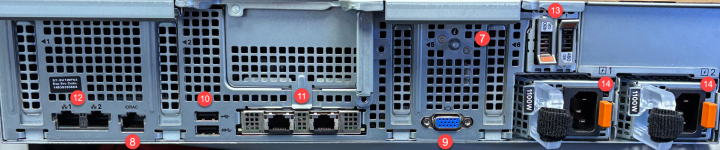

Rear view

  1. Storage Array Drives
  2. Additional SSD bays (Empty)
  3. Power Button
  4. USB 2.0 Type A
  5. VGA Out
  6. USB 3.0Type C
  7. UID Indicator
  8. IPMI / IDRAC Network Port
  9. VGA Out
  10. USB 3.0 Type A (x2)
  11. 10GbE Network Ports (x2)
  12. 1GbE Network Ports (x2)
  13. SLOG SSD Drive.
  14. Power Supply Unit (x2)

LED Behavior

  • Power LED: The indicator represents the power state of the device.

    • Power on: Illuminated
    • Power off: Dark (the LED is off)

  • Unit Identifier (UID) LED: The indicator will glow when the unit identification button is pressed.

  • Hard Drive Disk (HDD) LED: The indicator will flash amber during any HDD's read/write operation.

  • LAN LED: There are two LEDs for each onboard Ethernet interface, and each LED will respectively flash green during network traffic transmission.

Hardware Specifications

Model S5-48 S5-60
Weight 59.0 lbs (26.82 kg) 59.0 lbs (26.82 kg)
Dimensions Height: 3.41 (86.8 mm)
Width: 18.97 (482 mm)
Depth: 30.39 (758 mm) with Bezel 		Height: 3.41 (86.8 mm)
Width: 18.97 (482 mm)
Depth: 30.39 (758 mm) with Bezel
Capacity 48 TB 60 TB
CPU 2x(Xeon Gold - 5418Y) (24C/48T, 2.0GHz) 2x(Xeon Gold - 5418Y) (24C/48T, 2.0GHz)
RAM 512GB (16x32GB) ECC 512GB (16x32GB) ECC
RAID RAID 10 RAID 10
NICs

2x(10GbE Copper)

2x(1GbE Copper)

2x(10GbE Copper)

2x(1GbE Copper)
Dedicated OS Drive 2x(480GB m.2) RAID 1 on Boss Card 2x(480GB m.2) RAID 1 on Boss Card
SLOG Drive 960GB vSAS 2.5" SATA SSD >960GB vSAS 2.5" SATA SSD
Storage Drives 6x(20TB SAS HDD) 8x(20TB SAS HDD
Form Factor 2U 2U
Power Supply Dual - Hot Plug, Redundant PSU Dual - Hot Plug, Redundant PSU
Idle Power (W) 600 600
Operating Power (W) 1000 1000
PSU Rating (W) 1100 1100
Agent-level encryption Supported on SIRIS Supported on SIRIS
