SIRIS 4 / Datto NAS 4 X1 and X2 features and specifications
Topic
This article provides the layout, hardware specifications, and features for Datto's SIRIS 4 & Datto NAS 4, X1 and X2 continuity appliances.
Environment
- SIRIS 4 / Datto NAS 4 X1
- SIRIS 4 / Datto NAS 4 X2
Description
- SIRIS 4 / Datto NAS 4 X1 and X2 Device Layout
- SIRIS 4 / Datto NAS 4 X1 and X2 Features
- SIRIS 4 / Datto NAS 4 X1 and X2 Hardware Specifications
- LED Indicators
- Additional Resources
NOTE Unlike SIRIS 3 X, the SIRIS 4 X series of appliances do not have agent limits; however, certain billing terms may apply. Contact your Datto Sales Executive for more information
SIRIS 4 / Datto NAS 4 X1 and X2 Device Layout
Figure 1: SIRIS 4 / Datto NAS 4 X1 and X2 front view

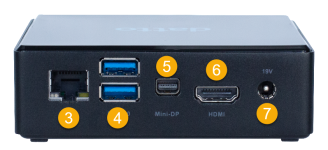

Figure 2: SIRIS 4 / Datto NAS 4 X1 and X2 rear view
- Power button
- 2 x USB 3.0
- 1 x 1GbE
- 2 x USB 3.0
- Mini DisplayPort
- 1 x HDMI
- Power input jack
SIRIS 4 / Datto NAS 4 X1 and X2 Features
SIRIS 4 / Datto NAS 4 X1 and X2 Hardware Specifications
S4X1 / DN-4X1
| Model | S4X1 / DN-4X1 |
| Weight | 0.5 lbs |
| Dimensions | 4" x 4" x 1" |
| Capacity | 1 TB (Flash)* |
| CPU | Intel Core i3-7100U |
| RAM | 16 GB (DDR4) |
| Array | N/A |
| NICs | 1 x 1GbE |
| Dedicated OS Drive | N/A |
| Transfer Drive | N/A |
| Form Factor | Mini Desktop |
| Agent-level encryption | Supported on SIRIS |
*40 GB reserved for OS partition
S4X2 / DN-4X2
| Model | S4X2 / DN-4X2 |
| Weight | 0.5 lbs |
| Dimensions | 4" x 4" x 1" |
| Capacity | 2 TB (Flash)* |
| CPU | Intel Core i3-7100U |
| RAM | 16 GB (DDR4) |
| Array | N/A |
| NICs | 1 x 1GbE |
| Dedicated OS Drive | N/A |
| Transfer Drive | N/A |
| Form Factor | Mini Desktop |
| Agent-level encryption | Supported on SIRIS |
*40 GB reserved for OS partition
LED Indicators
- Power button LED: The power button LED will illuminate green when power is on, and red if the device is in a standby or sleep state.
- HDD LED: The HDD LED will flash when data is transferring to or from the HDD.
