SIRIS 6 Desktop SSD (2 through 12) specifications

This article provides the layout and hardware specifications for Datto's SIRIS 6 Desktop SSD (2 through 12) devices.

Environment

• Datto S6-DX2
• Datto S6-DX4
• Datto S6-DX8
• Datto S6-DX12

Description

For information about determining the device model from the command line, refer to Updating SIRIS and ALTO firmware.

NOTE  Once the device is plugged in, it will perform a function test. As a part of this test, you will hear the fans power on briefly and you may see some lights flicker on the device as well. This is normal behavior but is NOT an indication that the device has been powered on. In order for the device to properly power on, you will need to press the power button.

Feature sets of these devices can be found here: SIRIS Features

SIRIS 6 Desktop SSD

Device Layout

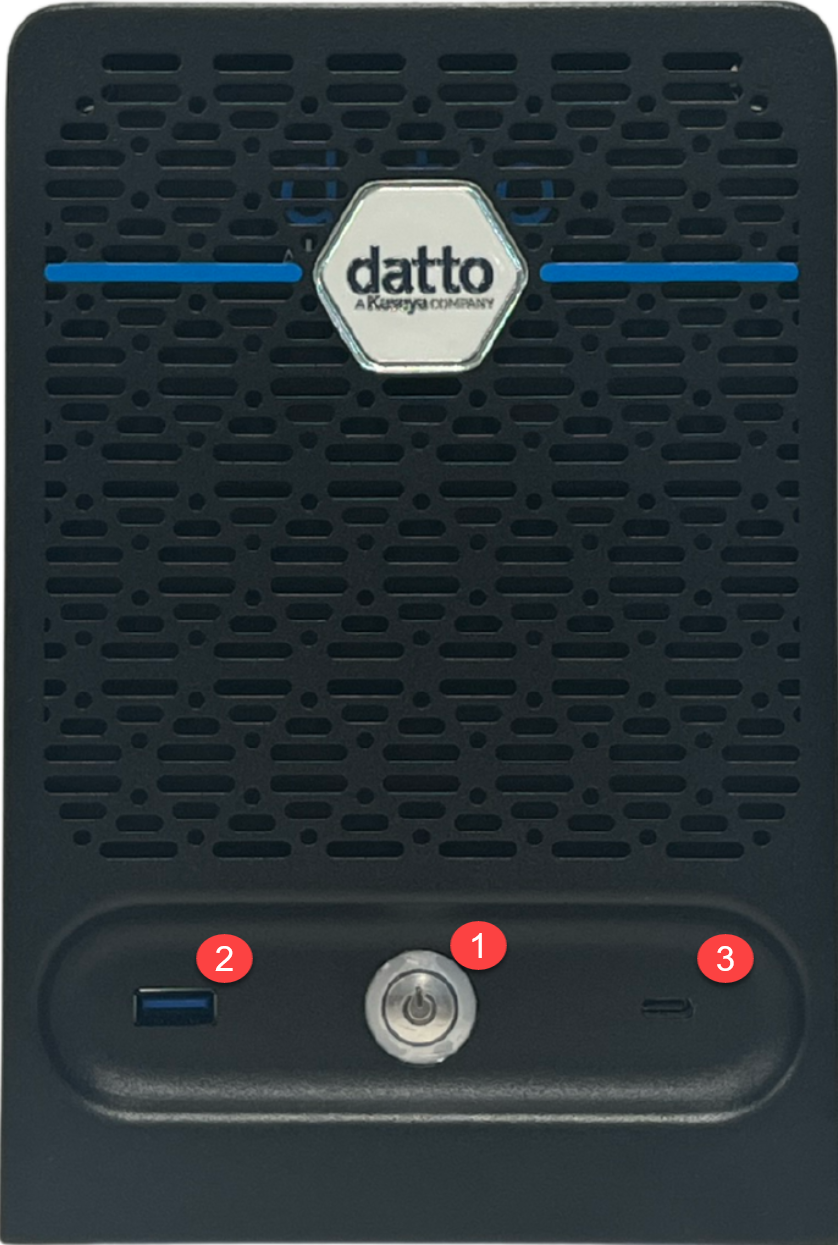

Front view

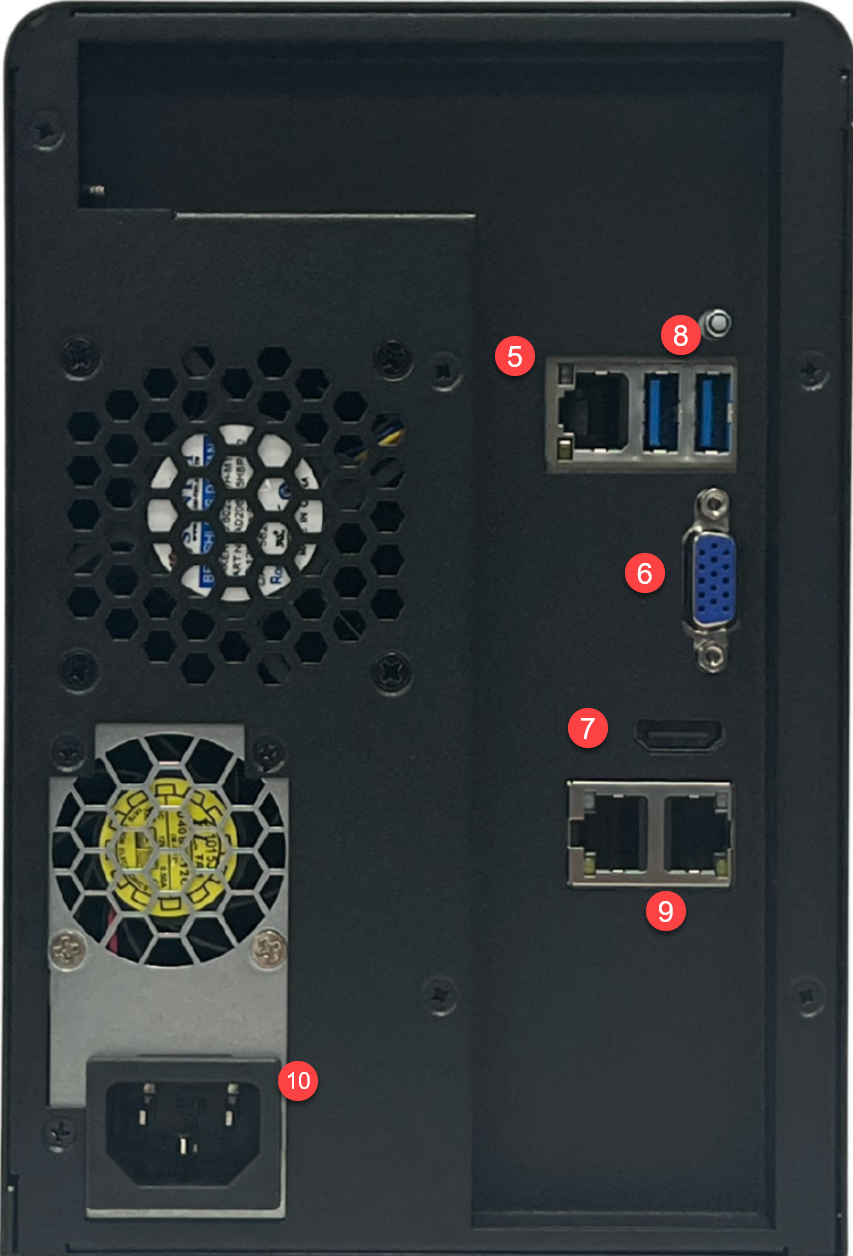

Rear view

1. Power button / Power LED
2. USB 3.0 Type A
3. USB 3.0 Type C
4. Storage Array Drives
5. IPMI Port
6. VGA Out
7. HDMI Port
8. USB 3.0 Type A (x2)
9. 10GbE NIC Port (x2)
10. Power Supply Unit (PSU)

LED Behavior

• Power LED: The indicator represents the power state of the device.

  • Power on: Illuminated
  • Power off: Dark (the LED is off)

• Unit Identifier (UID) LED: The indicator on the back of the device (above the USB ports) will glow when the unit identification button is pressed.

• LAN LED: There are two LEDs for each onboard Ethernet interface, and each LED will respectively flash green during network traffic transmission.

Hardware Specifications

Additional Resources

• Setting up a New Datto Appliance
• Registering a Datto Appliance
• Datto Networking Requirements
• Pairing Target Machines
