S6-X specifications

This article provides the layout and hardware specifications for Datto's S6-X devices.

Environment

• Datto S6-X
• Datto S6-X4

Description

For information about determining the device model from the command line, refer to Updating SIRIS and ALTO firmware.

Feature sets of these devices can be found here: SIRIS Features

Device Layout

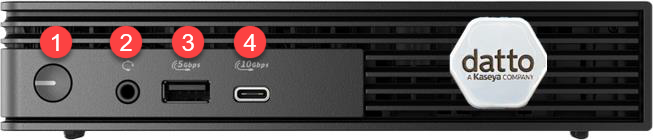

Front view

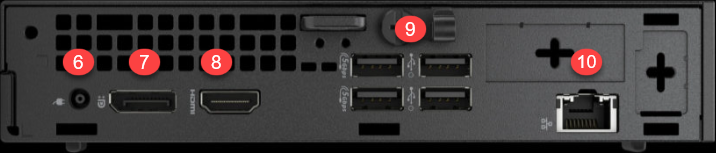

Rear view

Device Layout

1. Power button with LED indicator
2. Universal Audio Jack (Not used)
3. Line Out (Not used)
4. USB 3.0. Type A
5. USB 3.0. Type C
6. Power connection
7. DisplayPort
8. HDMI port
9. USB Type A (x4)
10. Gigabit Ethernet Network Interface Port with LAN LED indicators

LED Behavior

• Power LED: The indicator represents the power state of the device.

  • Power on: Illuminated
  • Power off: Dark (the LED is off)

• Hard Drive Disk (HDD) LED: The indicator will flash amber during any HDD's read/write operation.

• LAN LED: There are two LEDs for each onboard Ethernet interface, and each LED will respectively flash green during network traffic transmission.

Hardware Specifications
