SIRIS 4 / NAS 4 X Professional features and specifications

Topic

This article provides the layout, hardware specifications, and features for Datto's SIRIS 4/ Datto NAS 4 X Professional devices. For SIRIS 3 X Professional series see SIRIS 3 X Professional Features & Specifications

Environment

  • SIRIS 4 / Datto NAS 4 X 4 Professional
  • SIRIS 4 / Datto NAS 4 X 8 Professional
  • SIRIS 4 / Datto NAS 4 X 12 Professional

Description

Device Layout

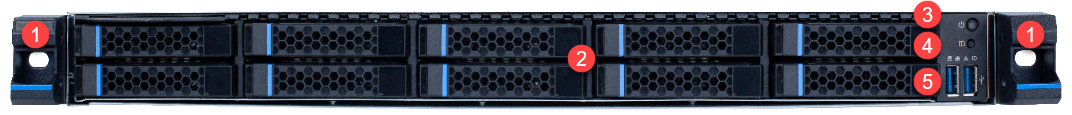

Figure 1: SIRIS 4 / Datto NAS 4 X Professional, front view

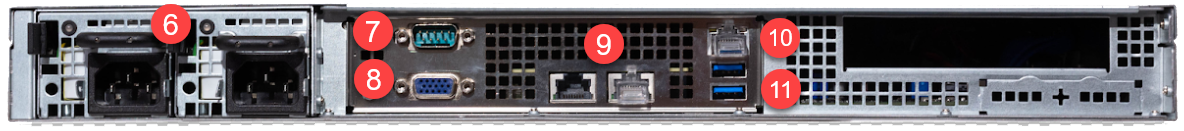

Figure 2: SIRIS 4 / Datto NAS 4 X Professional, rear view

  1. Faceplate release toggles
  2. Array drives
  3. Power button
  4. Unit identification LED
  5. 2 x USB 3.0
  6. 2 x hot-swappable power supply
  7. Serial Port
  8. VGA out
  9. 2 x 10GbE
  10. IPMI
  11. 2 x USB 3.0

LED Behavior

Power LED indicator:

This LED indicator represents the power state of the device:

  • Power on: Solid blue
  • Power off: Dark (the LED is off)

Unit identification LED Indicator

This will glow blue when the unit identification LED is pressed.

Power Supply Unit (PSU) LED Indicator

This LED will display the following behaviors under certain conditions:

  • Output ON and OK: Solid green
  • No AC power to PSU or any PSU in parallel: Dark (the LED is off)
  • AC present/only standby output on: Slow flashing green
  • AC cord unplugged or AC power lost with a second power supply in parallel still with AC input power: Solid amber
  • Abnormal conditions are present on the device, such as high temperatures, high power, high current, or slow spinning fans: Slow blinking amber
  • PSU critical event causing shutdown, such as over-current, over-voltage, or fan failure: Fast blinking amber
  • PSU firmware update mode: Fast blinking green

HDD LED Indicator

Each bay contains a pair of LED lights that display the following behaviors under certain conditions:

Power LED

  • Hard drive fault has occurred: Dark (the LED is off)
  • Powered on and operational: Solid blue

Activity LED

  • HDD is busy and operational: Solid green
  • Drive is booting and spinning up: Blinking red

Features

Hardware Specifications

SIRIS 4 / Datto NAS 4 X 4 Professional

Model S4XP4 / DN-4XP4
Weight 19.5 lb
Dimensions 21.75" L (22.63" with ears)
17.25" W (19" with ears)
1.75" H
Capacity 4 TB (Flash)
CPU Intel Xeon D2143IT
RAM 48 GB (DDR4)
Array RAID 5
NICs 2 x 10GbE
Dedicated OS Drive 240 GB SSD
Form Factor 1U 10-bay, 2.5" hot-swappable
Agent-level encryption Supported on SIRIS



SIRIS 4 / Datto NAS 4 X 8 Professional

Model S4XP8 / DN-4XP8
Weight 19.5 lb
Dimensions 21.75" L (22.63" with ears)
17.25" W (19" with ears)
1.75" H
Capacity 8 TB (Flash)
CPU Intel Xeon D2143IT
RAM 48 GB (DDR4)
Array RAID 5
NICs 2 x 10GbE
Dedicated OS Drive 240 GB SSD
Form Factor 1U 10-bay, 2.5" hot-swappable
Agent-level encryption Supported on SIRIS

SIRIS 4 / Datto NAS 4 X 12 Professional

Model S4XP12 / DN-4XP12
Weight 19.5 lb
Dimensions 21.75" L (22.63" with ears)
17.25" W (19" with ears)
1.75" H
Capacity 12 TB (Flash)
CPU Intel Xeon D2143IT
RAM 64 GB (DDR4)
Array RAID 5
NICs 2 x 10GbE
Dedicated OS Drive 240 GB SSD
Form Factor 1U 10-bay, 2.5" hot-swappable
Agent-level encryption Supported on SIRIS
