SIRIS 4 / NAS 4 Enterprise features and specifications

Topic

This article provides the layout, hardware specifications, and features for Datto's SIRIS 4 Enterprise and NAS 4 Enterprise continuity appliances. For SIRIS 3 Enterprise, see SIRIS 3 / NAS 3 Enterprise features and specifications

Environment

  • SIRIS 4 Enterprise
  • NAS 4 Enterprise

Description

Device Layout - SIRIS 4 Enterprise / NAS 4 Enterprise

Device Layout - SIRIS 4 Enterprise / NAS 4 Enterprise

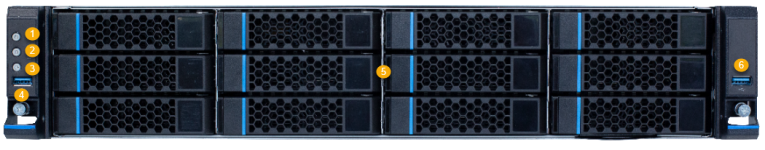

Figure 1: SIRIS 4 Enterprise / NAS 4 Enterprise front view

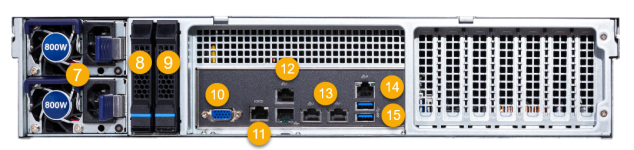

Figure 2: SIRIS 4 Enterprise / NAS 4 Enterprise rear view

  1. Power button
  2. Unit identification LED
  3. System reset
  4. USB 2.0
  5. Array drive bays
  6. USB 3.0
  7. 2 x hot-swappable power supply
  8. OS drive
  9. Transfer drive
  10. VGA out
  11. Serial port
  12. 2x1GbE
  13. 2 x 10GbE
  14. 1 x IPMI
  15. 2 x USB 3.0

LED Behavior

Front Panel LED indicator:

The front panel contains several LEDs that display the following behaviors under certain conditions:

  • Power LED: Solid Blue (device is powered on)
  • UID LED: Solid blue (the UID button has been pressed)
  • HDD Activity LED: Amber (HDD is busy)
  • System Status LED: Green (when system status is OK); Red (when a system fault has been detected)
  • LAN 1 & 2: Green (when transmitting data)

Power Supply Unit (PSU) LED Indicator

The Power Supply Unit (PSU) LED will display the following behaviors under certain conditions:

  • Output ON and OK: Solid green
  • No AC power to PSU or any PSU in parallel: Dark (the LED is off)
  • AC present/only standby output on: Slow flashing green
  • AC cord unplugged or AC power lost with a second power supply in parallel still with AC input power: Solid amber
  • Abnormal conditions are present on the device, such as high temperatures, high power, high current, or slow spinning fans: Slow blinking amber
  • PSU critical event causing shutdown, such as over-current, over-voltage, or fan failure: Fast blinking amber
  • PSU firmware update mode: Fast blinking green

HDD LED Indicator

Each bay contains a pair of LED lights that display the following behaviors under certain conditions:

Power LED

  • Hard drive fault has occurred: LED is dark
  • Powered on and operational: Solid blue

Activity LED

  • HDD is busy and operational: Solid green
  • Drive is booting and spinning up: Blinking red

Features

Hardware Specifications

 SIRIS 4 / NAS 4 Enterprise 6

Model S4E6 / DN4-E6
Weight 43.5 lbs
Dimensions 29.32" L (29.88" with ears)
17.5" W (19" with ears)
3.5" H
Capacity 6 TB
CPU 2 x Intel Xeon Silver 4210
RAM 64 GB (DDR4)
Array 4 x 4 TB (RAID 6)
NICs 2 x 10GbE + 2x 1GbE
Dedicated OS Drive 240 GB SSD
Transfer Drive 1 x 1 TB
Power Output: 2 x 800 W
Input: 120 V - 240 V
Form Factor 2U
Agent-level encryption Supported on SIRIS

SIRIS 4 / NAS 4 Enterprise 12

Model S4E12 / DN4-E12
Weight 47 lbs
Dimensions 29.32" L (29.88" with ears)
17.5" W (19" with ears)
3.5" H
Capacity 12 TB
CPU 2 x Intel Xeon Silver 4210
RAM 64 GB (DDR4)
Array 6 x 4 TB (RAID 6)
NICs 2 x 10GbE + 2x1GbE
Dedicated OS Drive 240 GB SSD
Transfer Drive 1 x 1 TB
Power Output: 2 x 800 W
Input: 120 V - 240 V
Form Factor 2U
Agent-level encryption Supported on SIRIS



SIRIS 4 / NAS 4 Enterprise 18

Model S4E18/ DN3-E18
Weight 47 lbs
Dimensions 29.32" L (29.88" with ears)
17.5" W (19" with ears)
3.5" H
Capacity 18 TB
CPU 2 x Intel Xeon Silver 4214
RAM 64 GB (DDR4)
Array 6 x 6 TB (RAID 6)
NICs 2 x 10GbE + 2x 1GbE
Dedicated OS Drive 240 GB SSD
Transfer Drive 1 x 1TB
Power Output: 2 x 800 W
Input: 120 V - 240 V
Form Factor 2U
Agent-level encryption Supported on SIRIS

SIRIS 4 / NAS 4 Enterprise 24

Model S4E24 / DN4-E24
Weight 47 lbs
Dimensions 29.32" L (29.88" with ears)
17.5" W (19" with ears)
3.5" H
Capacity 24 TB
CPU 2 x Intel Xeon Silver 4214
RAM 64 GB (DDR4)
Array 6 x 8 TB (RAID 6)
NICs 2 x 10GbE
Dedicated OS Drive 240 GB SSD
Transfer Drive 1 x 1 TB
Power Output: 2 x 800 W
Input: 120 V - 240 V
Form Factor 2U
Agent-level encryption Supported on SIRIS

SIRIS 4 / NAS 4 Enterprise 36

Model S4E36 / DN4-E36
Weight 52 lbs
Dimensions 29.32" L (29.88" with ears)
17.5" W (19" with ears)
3.5" H
Capacity 36 TB
CPU 2 x Intel Xeon Silver 4216
RAM 96 GB (DDR4)
Array 9 x 6 TB (RAID 6)
NICs 2 x 10GbE + 2x 1GbE
Dedicated OS Drive 240 GB SSD
Transfer Drive 1 x 1TB
Power 2x 800W PSU
Form Factor 2U
Agent-level encryption Supported on SIRIS

SIRIS 4 / NAS 4 Enterprise 48

Model S4E48 / DN4-E48
Weight 57.5 lbs
Dimensions 29.32" L (29.88" with ears)
17.5" W (19" with ears)
3.5" H
Capacity 48 TB
CPU 2 x Intel Xeon Silver 4216
RAM 128 GB (DDR4)
Array 12 x 6 TB (RAID 6)
NICs 2 x 10GbE + 2x 1GbE
Dedicated OS Drive 240 GB SSD
Transfer Drive 1 x 1 TB
Power Output: 2 x 800 W
Input: 120 V - 240 V
Form Factor 2U
Agent-level encryption Supported on SIRIS

SIRIS 4 / NAS 4 Enterprise 60

Model S4E60 / DN4-E60
Weight 50.5 lbs
Dimensions 29.32" L (29.88" with ears)
17.5" W (19" with ears)
3.5" H
Capacity 60 TB
CPU 2 x Intel Xeon Gold 5218
RAM 256 GB (DDR4)
Array 8 x 12 TB (RAID 6)
NICs 2 x 10GbE + 2x 1GbE
Dedicated OS Drive 240 GB SSD
Transfer Drive 1 x 1 TB
Power Output: 2 x 800 W
Input: 120 V - 240 V
Form Factor 2U
Agent-level encryption Supported on SIRIS

SIRIS 4 / NAS 4 Enterprise 80

Model S4E80 / DN4-E80
Weight 54 lbs
Dimensions 29.32" L (29.88" with ears)
17.5" W (19" with ears)
3.5" H
Capacity 80 TB
CPU 2 x Intel Xeon Gold 5218
RAM 512 GB (DDR4)
Array 10 x 12 TB (RAID 6)
NICs 2 x 10GbE + 2x 1GbE
Dedicated OS Drive 2 x 240 GB SSD
Transfer Drive 1 x 1TB
Power Output: 2 x 800 W
Input: 120 V - 240 V
Form Factor 2U
Agent-level encryption Supported on SIRIS

SIRIS 4 / NAS 4 Enterprise 100

Model S4E100 / DN4-E100
Weight 57.5 lbs
Dimensions 29.32" L (29.88" with ears)
17.5" W (19" with ears)
3.5" H
Capacity 100 TB
CPU 2 x Intel Xeon Gold 6240
RAM 512 GB (DDR4)
Array 12 x 12 TB (RAID 6)
NICs 2 x 10GbE + 2x 1GbE
Dedicated OS Drive 2 x 240 GB SSD
Transfer Drive 1 x 1 TB
Power Output: 2 x 800 W
Input: 120 V - 240 V
Form Factor 2U
Agent-level encryption Supported on SIRIS
