SIRIS 6-(2 through 8) specifications
This article provides the layout and hardware specifications for Datto's SIRIS 6-(2 through 8) devices.
Environment
- Datto S6-2
- Datto S6-3
- Datto S6-4
- Datto S6-6
- Datto S6-8
Description
Devices in this range of sizes may use one of two types of Dell chassis, the Precision 3930 XL or PowerEdge R250XE. The features will be the same between the devices and the specifications of each are provided below. For information about determining the device model from the command line, refer to Updating SIRIS and ALTO firmware.
NOTE Once the device is plugged in, it will perform a function test. As a part of this test, you will hear the fans power on briefly and you may see some lights flicker on the device as well. This is normal behavior but is NOT an indication that the device has been powered on. In order for the device to properly power on, you will need to press the power button.
Feature sets of these devices can be found here: SIRIS Features
PowerEdge R360
Device Layout

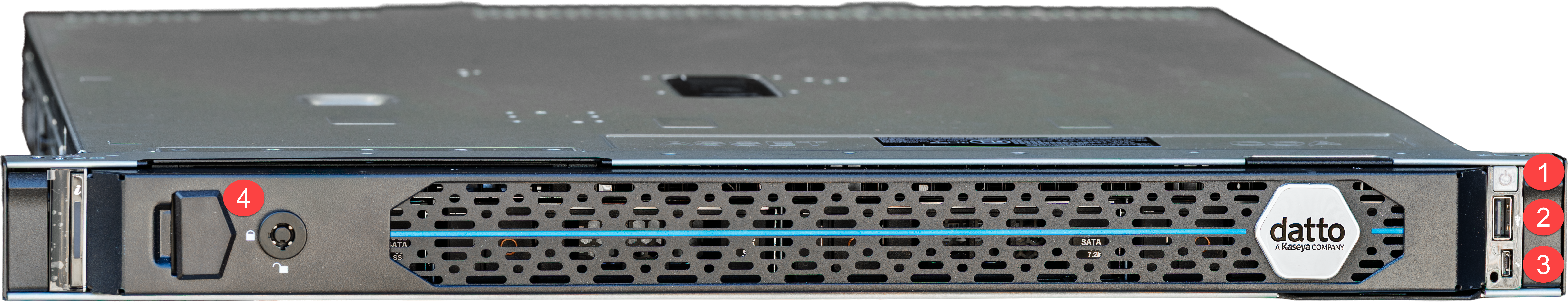

Front view (cover)
/DATTO_R360_FRONT_BEZEL_NEW.png)

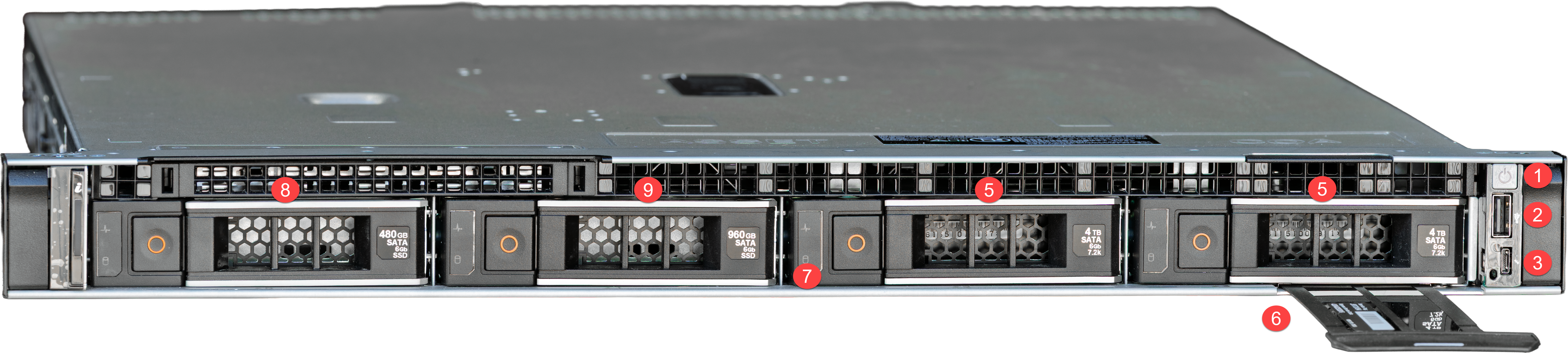

Front view
/DATTO_R360_FRONT_TAB_NEW.png)

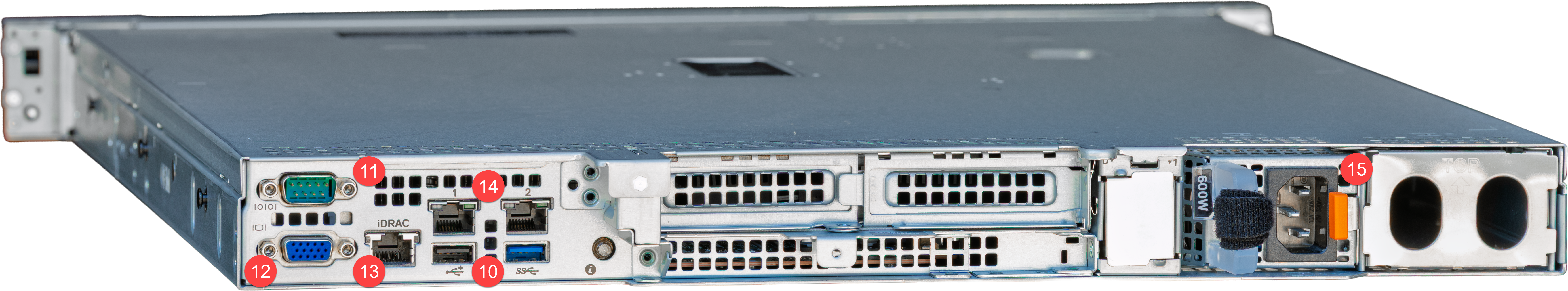

Rear view
/DATTO_R360_REAR_NEW.png)
- Power Button
- USB Type A
- USB Type C
- Faceplate release
- Storage Array drive slots
- Information tab
- HDD Activity Indicator
- OS drive
- Slog drive
- USB Type A (x2)
- Serial Port
- VGA Port
- iDRAC Ethernet Port
- 1 GbE Network Port with LED indicator (x2)
- Power supply connection
LED Behavior
Power LED: The indicator represents the power state of the device.
- Power on: Illuminated
- Power off: Dark (the LED is off)
Unit Identifier (UID) LED: The indicator will glow when the unit identification button is pressed.
Hard Drive Disk (HDD) LED: The indicator will flash amber during any HDD's read/write operation.
LAN LED: There are two LEDs for each onboard Ethernet interface, and each LED will respectively flash green during network traffic transmission.
Hardware Specifications
| Model | S6-2 | S6-3 | S6-4 | S6-6 | S6-8 |
| Weight | 23 lbs (10.5 kg) | 23 lbs (10.5 kg) | 23 lbs (10.5 kg) | 23 lbs (10.5 kg) | 23 lbs (10.5 kg) |
| Dimensions | Height: 1.68 in (42.8 mm) Width: 18.97 in (482 mm) Depth: 23.56 in (598.6 mm) | Height: 1.68 in (42.8 mm) Width: 18.97 in (482 mm) Depth: 23.56 in (598.6 mm) | Height: 1.68 in (42.8 mm) Width: 18.97 in (482 mm) Depth: 23.56 in (598.6 mm) | Height: 1.68 in (42.8 mm) Width: 18.97 in (482 mm) Depth: 23.56 in (598.6 mm) | Height: 1.68 in (42.8 mm) Width: 18.97 in (482 mm) Depth: 23.56 in (598.6 mm) |
| Capacity | 1860GiB | 2790GiB | 3719GiB | 5580GiB | 7440GiB |
| CPU | Intel® Xeon® 6357P (8c/16t, 3.0GHz base) | Intel® Xeon® 6357P (8c/16t, 3.0GHz base) | Intel® Xeon® 6357P (8c/16t, 3.0GHz base) | Intel® Xeon® 6357P (8c/16t, 3.0GHz base) | Intel® Xeon® 6357P (8c/16t, 3.0GHz base) |
| RAM | 32GB (1x 32GB) DDR5 UDIMM ECC | 32GB (1x 32GB) DDR5 UDIMM ECC | 32GB (1x 32GB) DDR5 UDIMM ECC | 64GB (2x 32GB) DDR5 UDIMM ECC | 64GB (2x 32GB) DDR5 UDIMM ECC |
| RAID | RAID 1 (mirror) | RAID 1 (mirror) | RAID 1 (mirror) | RAID 1 (mirror) | RAID 1 (mirror) |
| NICs | 2 x 1G | 2 x 1G | 2 x 1G | 2 x 1G | 2 x 1G |
| Dedicated OS Drive | 480GB SATA SSD | 480GB SATA SSD | 480GB SATA SSD | 480GB SATA SSD | 480GB SATA SSD |
| SLOG Drive | 480GB SATA SSD | 480GB SATA SSD | 480GB SATA SSD | 480GB SATA SSD | 480GB SATA SSD |
| Storage Drives | 2 x 4TB SATA HDD | 2 x 4TB SATA HDD | 2 x 4TB SATA HDD | 2 x 8TB SATA HDD | 2 x 8TB SATA HDD |
| Form Factor | 1U Rackmount | 1U Rackmount | 1U Rackmount | 1U Rackmount | 1U Rackmount |
| Power Supply | 1x Hot Plug(1+0), Non-Redundant PSU | 1x Hot Plug(1+0), Non-Redundant PSU | 1x Hot Plug(1+0), Non-Redundant PSU | 1x Hot Plug(1+0), Non-Redundant PSU | 1x Hot Plug(1+0), Non-Redundant PSU |
| PSU Rating (W) | 600W | 600W | 600W | 600W | 600W |
| Agent-level encryption | Supported on SIRIS | Supported on SIRIS | Supported on SIRIS | Supported on SIRIS | Supported on SIRIS |
